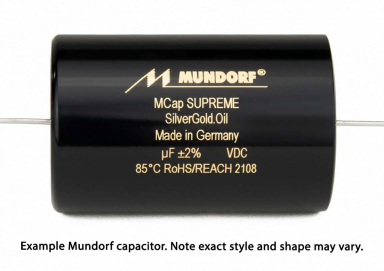

Mundorf MCap Supreme Classic Silver Gold Oil Capacitors

The Mundorf Supreme Silver Gold Oil capacitor is the top-of-the line model of their oil impregnated capacitors. They feature an extended lifetime and sonically stands out with a wonderful natural tone and exceptional micro dynamics. This capacitor is an oil impregnated metallised polypropylene dielectric capacitor, with virtually inductance free series wiring. High-purity silver and gold is used for the capacitor coating and the winding is impregnated with a special oil developed in an exhaustive series of experiments and listening tests.

State-of-the-art metallised polypropylene foils make it possible to maintain extremely exacting production tolerances. These manufacturing tolerances are one of the key reasons for the wonderfully spacious music reproduction achieved with these capacitors. The long-term capacitance stability of these products is equally important.

Specifications:

• Dielectric: Polypropylene
• Metallisation: 99% silver, 1% gold
• Purity of silver: min. 99.97% typ. 99.99%
• Purity of gold: min. 99.97% typ. 99.99%
• Dielectric strength: 1000V DC
• Loss factor tan ∂: 0.0002 @ 1kHz; 0.0001 @ 10kHz
• Permissible ambient temperature 85°C / 185°F

Dimensions:

Mundorf M-Cap Supreme Silver Gold Oil capacitor dimension
